型號XNUCLEO-F030R8 Package B
品牌Waveshare
年份16+
描述SKU: XNUCLEO-F030R8 Package B
 規格書點擊查看
-
DESCRIPTION
XNUCLEO-F030R8 Development Kit, Comes with Common Used Peripheral Shields, OLED, RTC, AD/DA, Audio Codec ...

Overview

This development kit includes :

  • XNUCLEO-F030R8 (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F030R8)
  • Accessory Shield (0.96inch OLED, high precision RTC, 3-axis accelerometer, temperature sensor, RGB LED, etc.)
  • Analog Test Shield (AD acquisition, DA output test)
  • Music Shield (Audio codec, music playing, recording)

XNUCLEO-F030R8 Features

  • Compatible with NUCLEO-F030R8, onboard Cortex-M0 microcontroller STM32F030R8T6
  • Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
  • ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
  • Supports mbed, build prototype quickly by mbed SDK and online tools
  • Comprehensive free software HAL library including a variety of software examples
  • Comes with a separated ST-LINK/V2 module



Advantages

Compare XNUCLEO NUCLEO Remarks
Arduino compatibility UNO, Leonardo UNO XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo
Arduino ICSP interface Yes None ICSP is required by certain kinds of shields
USB connectivity Yes None The USB connector of NUCLEO is for debugging ONLY, not available for USB connection
USB connector Micro USB Mini USB Micro USB is the advanced USB standard
Morpho headers mark Most None Now you can check the PCB mark instead of datasheet
Common interfaces are connected via Jumpers 0Ω resistors Jumpers are much easier to use, need no soldering
UART debugging Available while in-circuit debugging Not available while in-circuit debugging The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip.
8MHz crystal Yes None Timer is more accurate when using external 8MHz crystal
32.768KHz crystal Yes None Required for RTC
USB fuse Yes (500mA) None The computer USB interface might be harmed without fuse
LEDs 4 1 The more LEDs, the easier to monitor program running status
UART indicator Yes None Data communication is visible now
DC input Yes None A convenience
Button position Close to PCB edge Close to Arduino connector The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge
ST-LINK Separated Integrated ST-LINK can be used anywhere else
Comes with USB cable Yes None



What's on the XNUCLEO-F030R8

XNUCLEO-F030R8 STM32 development board on board resource
  1. STM32F030R8T6
    • Core : ARM® 32-bit Cortex™-M0
    • Operating frequency : 48MHz
    • Operating voltage : 2.4V-3.6V
    • Package : LQFP64
    • Memories : 64kB Flash, 8kB SRAM
    • Interfaces : 2 x SPI, 2 x USART, 2 x I2C
    • AD/DA : 1 x AD (12 bit)
  2. SPX3819M5 : 3.3V voltage regulator
  3. AMS1117-5.0 : 5.0V voltage regulator
  4. CP2102 : USB to UART convertor
  5. Arduino connector : for connecting Arduino shields
  6. ICSP interface : Arduino ICSP
  7. USB TO UART : for debugging
  8. SWD interface : for programming and debugging
  9. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
  10. 6-12V DC input
  11. User button
  12. Reset button
  13. Power indicator
  14. User LED
  15. Serial port Rx/Tx indicator
  16. 500mA fast self-recovery fuse
  17. 8MHz crystal
  18. 32.768KHz crystal
  19. ADC/I2C selection jumper
    • short A and B : Arduino A4, A5 is used as I2C
    • short B and C : Arduino A4, A5 is used as ADC
  20. UART selection jumper
  21. MCU current test jumper : for low power tests
  22. Power selection jumper
    • short 5V and U5V : powered from USB connection
    • short 5V and E5V : powered from external power supply
  23. User button jumper
    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires
  24. User LED jumper
    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires

XNUCLEO-F030R8 Expansion Headers

XNUCLEO-F030R8 STM32 development board XNUCLEO-F030R8 STM32 development board

XNUCLEO-F030R8 Dimension

Development Resources

Wiki : www.waveshare.com/wiki/XNUCLEO-F030R8

XNUCLEO-F030R8 Photos

XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board
XNUCLEO-F030R8 STM32 development board back view
XNUCLEO-F030R8 STM32 development board
Connecting with ST-LINK/V2 (mini)

Included Shields

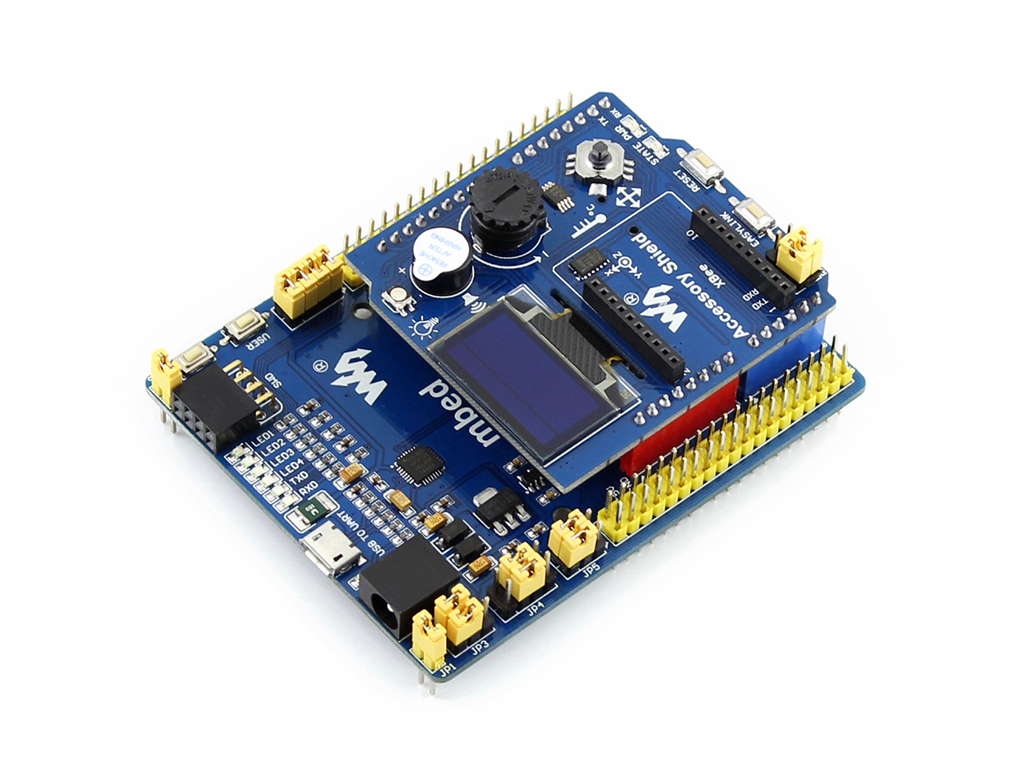

Connecting with Accessory Shield
Connecting with Accessory Shield

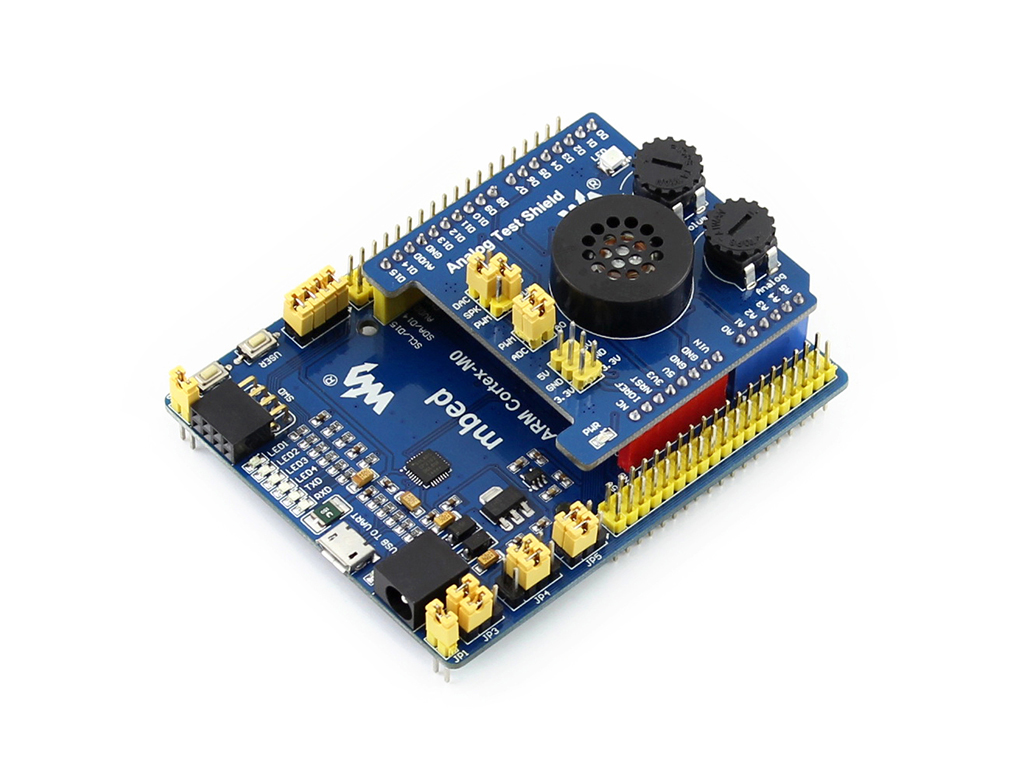

Connecting with Analog Test Shield
Connecting with Analog Test Shield

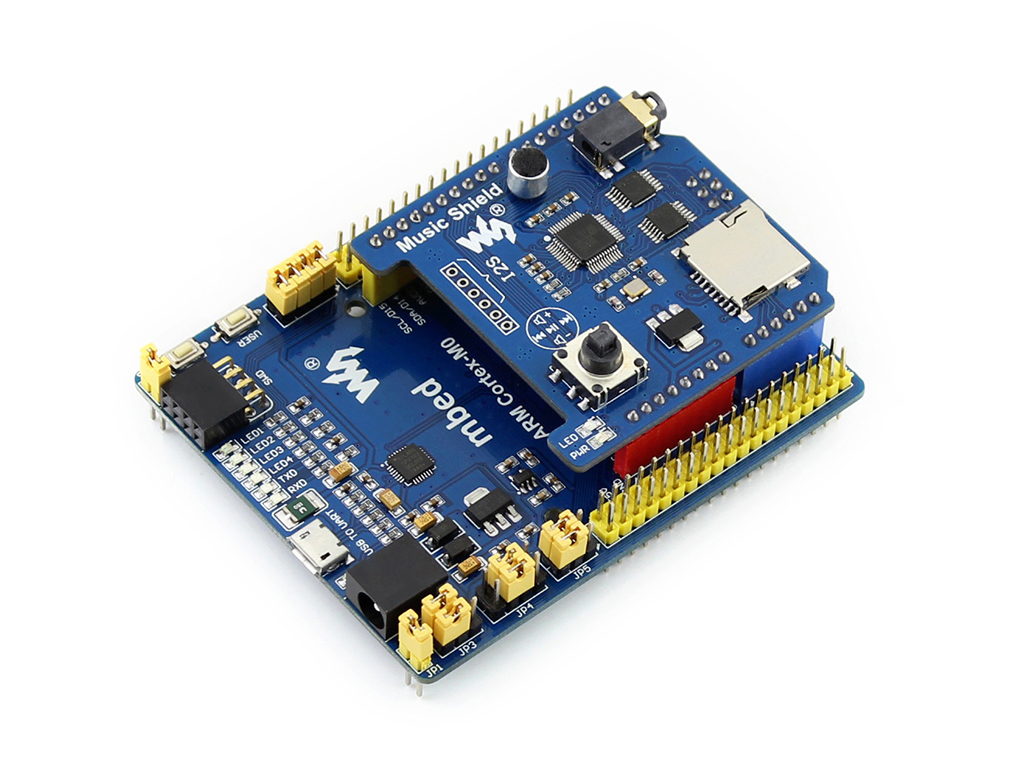

Connecting with Music Shield
Connecting with Music Shield
