DESCRIPTION

XNUCLEO-F103RB Development Kit, Comes with Common Used Peripheral Shields, OLED, RTC, AD/DA, Audio Codec, RS485, CAN ...

Overview

This development kit includes :

XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB)
Accessory Shield (0.96inch OLED, high precision RTC, 3-axis accelerometer, temperature sensor, RGB LED, etc.)

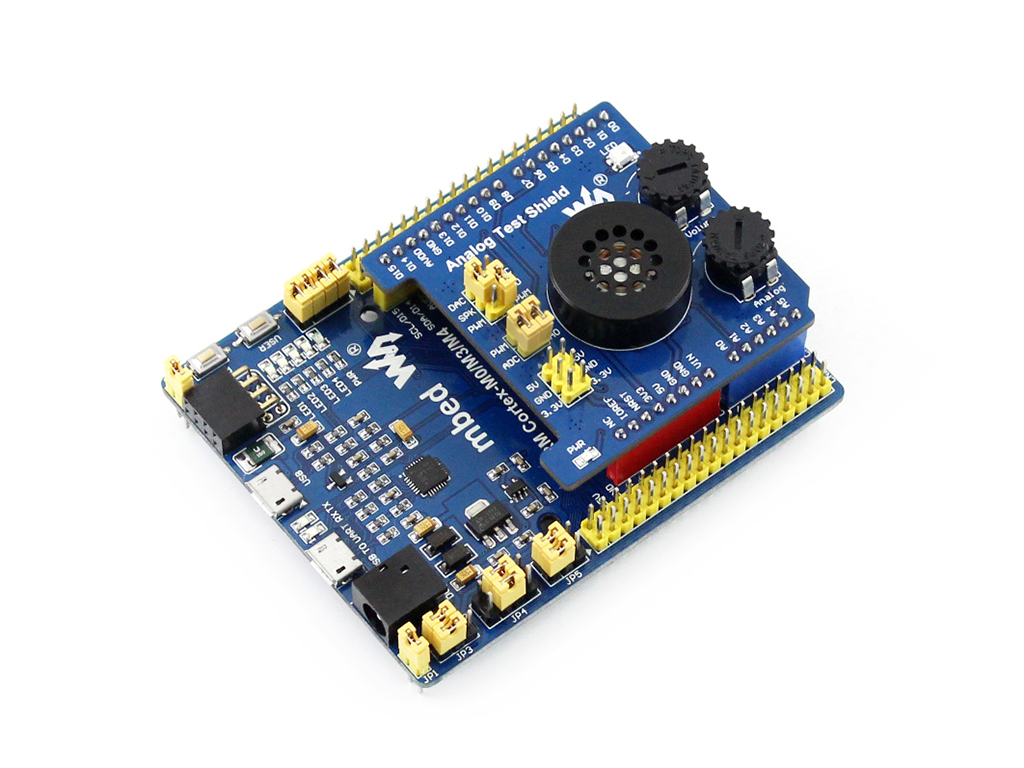

Analog Test Shield (AD acquisition, DA output test)

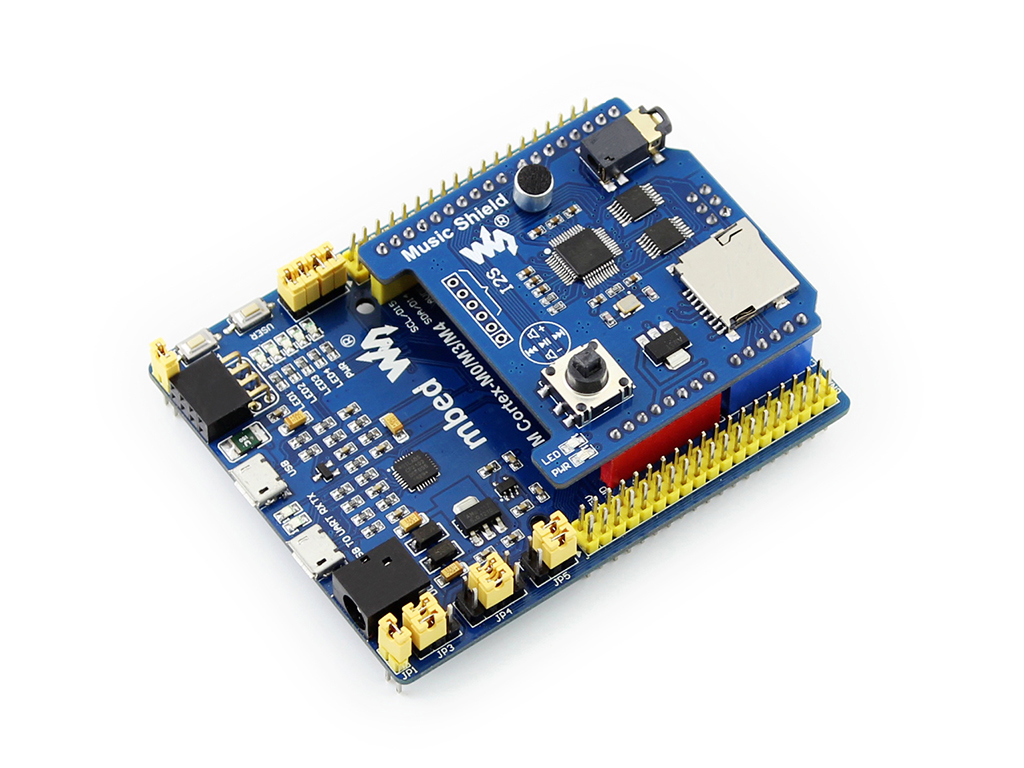

Music Shield (Audio codec, music playing, recording)

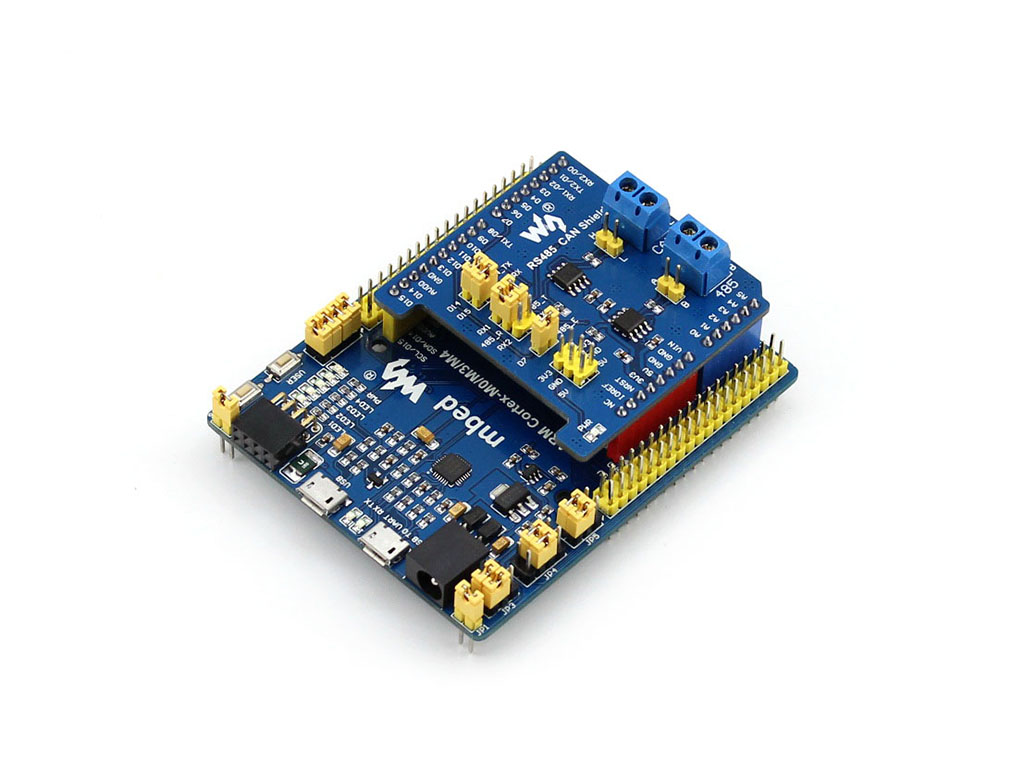

RS485 CAN Shield (RS485 and CAN communication)

Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6
Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
Supports mbed, build prototype quickly by mbed SDK and online tools
Comprehensive free software HAL library including a variety of software examples
Comes with a separated ST-LINK/V2 module

Compare	XNUCLEO	NUCLEO	Remarks
Arduino compatibility	UNO, Leonardo	UNO	XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo
Arduino ICSP interface	Yes	None	ICSP is required by certain kinds of shields
USB connectivity	Yes	None	The USB connector of NUCLEO is for debugging ONLY, not available for USB connection
USB connector	Micro USB	Mini USB	Micro USB is the advanced USB standard
Morpho headers mark	Most	None	Now you can check the PCB mark instead of datasheet
Common interfaces are connected via	Jumpers	0Ω resistors	Jumpers are much easier to use, need no soldering
UART debugging	Available while in-circuit debugging	Not available while in-circuit debugging	The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip.
8MHz crystal	Yes	None	Timer is more accurate when using external 8MHz crystal
32.768KHz crystal	Yes	None	Required for RTC
USB fuse	Yes (500mA)	None	The computer USB interface might be harmed without fuse
LEDs	4	1	The more LEDs, the easier to monitor program running status
UART indicator	Yes	None	Data communication is visible now
DC input	Yes	None	A convenience
Button position	Close to PCB edge	Close to Arduino connector	The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge
ST-LINK	Separated	Integrated	ST-LINK can be used anywhere else
Comes with USB cable	Yes	None

STM32F103RBT6
- Core : ARM® 32-bit Cortex™-M3
- Operating frequency : 72MHz
- Operating voltage : 2.0V-3.6V
- Package : LQFP64
- Memories : 128kB Flash, 20kB SRAM
- Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
- AD/DA : 2 x AD (12 bit, 16 channels)
SPX3819M5 : 3.3V voltage regulator
AMS1117-5.0 : 5.0V voltage regulator
CP2102 : USB to UART convertor
Arduino connector : for connecting Arduino shields
ICSP interface : Arduino ICSP
USB TO UART : for debugging
USB connector : USB communication interface
SWD interface : for programming and debugging
ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
6-12V DC input
User button
Reset button
Power indicator
User LED
500mA fast self-recovery fuse
Serial port Rx/Tx indicator
8MHz crystal
32.768KHz crystal
ADC/I2C selection jumper
- short A and B : Arduino A4, A5 is used as I2C
- short B and C : Arduino A4, A5 is used as ADC
UART selection jumper
MCU current test jumper : for low power tests
Power selection jumper
- short 5V and U5V : powered from USB connection
- short 5V and E5V : powered from external power supply
USB enable jumper
- short the jumper to enable
- open the jumper to disable
User button jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
User LED jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
