XNUCLEO-F030R8  , Improved STM32 NUCLEO Board SKU: XNUCLEOF030R8
  |  0 訂單數量
單價
US $18.80 / PCS
發貨方式
--->>>到達時間 5-7天
--->>>到達時間 15-27天
--->>>到達時間 5-7天
數量
 PCS
金額
US $18.80

主營全新原裝正品現貨,訂貨,註冊會員提交詢價可以了解到最新產品報價。^_^
RF和微波
產品詳情
型號XNUCLEO-F030R8
品牌Waveshare
年份16+
描述, Improved STM32 NUCLEO Board SKU: XNUCLEO-F030R8
 規格書點擊查看
-
  • $18.192+
    $17.693+
    $17.394+

    DESCRIPTION
    STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F030R8

    XNUCLEO-F030R8 Features

    • Compatible with NUCLEO-F030R8, onboard Cortex-M0 microcontroller STM32F030R8T6
    • Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
    • ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
    • Supports mbed, build prototype quickly by mbed SDK and online tools
    • Comprehensive free software HAL library including a variety of software examples
    • Comes with a separated ST-LINK/V2 module



    Advantages

    Compare XNUCLEO NUCLEO Remarks
    Arduino compatibility UNO, Leonardo UNO XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo
    Arduino ICSP interface Yes None ICSP is required by certain kinds of shields
    USB connectivity Yes None The USB connector of NUCLEO is for debugging ONLY, not available for USB connection
    USB connector Micro USB Mini USB Micro USB is the advanced USB standard
    Morpho headers mark Most None Now you can check the PCB mark instead of datasheet
    Common interfaces are connected via Jumpers 0Ω resistors Jumpers are much easier to use, need no soldering
    UART debugging Available while in-circuit debugging Not available while in-circuit debugging The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip.
    8MHz crystal Yes None Timer is more accurate when using external 8MHz crystal
    32.768KHz crystal Yes None Required for RTC
    USB fuse Yes (500mA) None The computer USB interface might be harmed without fuse
    LEDs 4 1 The more LEDs, the easier to monitor program running status
    UART indicator Yes None Data communication is visible now
    DC input Yes None A convenience
    Button position Close to PCB edge Close to Arduino connector The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge
    ST-LINK Separated Integrated ST-LINK can be used anywhere else
    Comes with USB cable Yes None



    What's on the XNUCLEO-F030R8

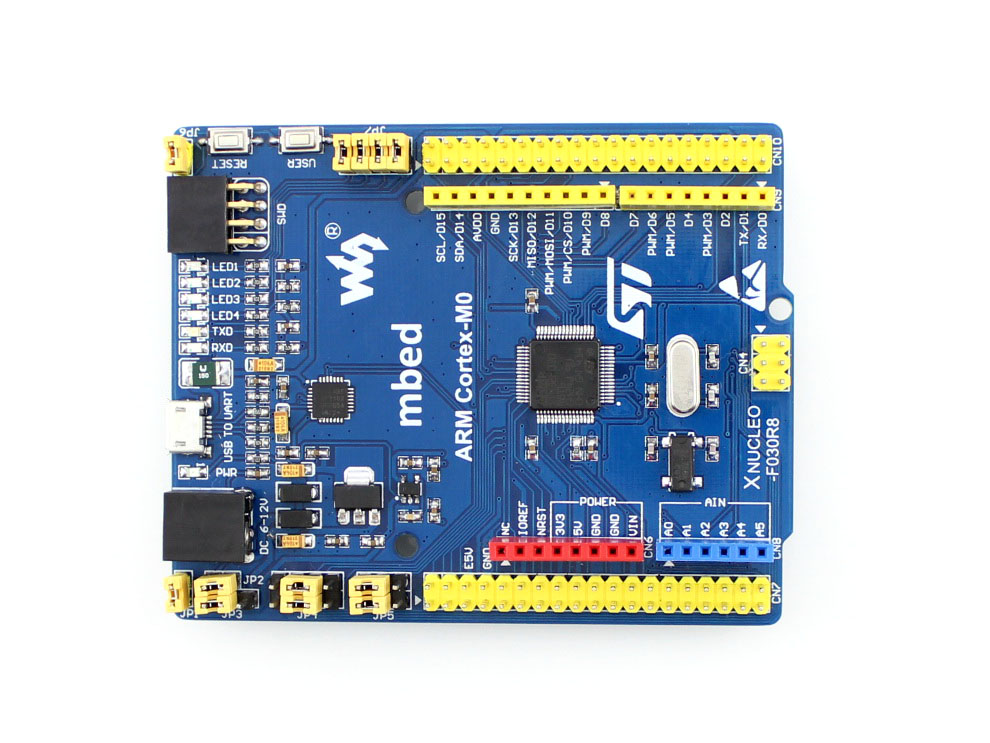

    XNUCLEO-F030R8 STM32 development board on board resource
    1. STM32F030R8T6
      • Core : ARM® 32-bit Cortex™-M0
      • Operating frequency : 48MHz
      • Operating voltage : 2.4V-3.6V
      • Package : LQFP64
      • Memories : 64kB Flash, 8kB SRAM
      • Interfaces : 2 x SPI, 2 x USART, 2 x I2C
      • AD/DA : 1 x AD (12 bit)
    2. SPX3819M5 : 3.3V voltage regulator
    3. AMS1117-5.0 : 5.0V voltage regulator
    4. CP2102 : USB to UART convertor
    5. Arduino connector : for connecting Arduino shields
    6. ICSP interface : Arduino ICSP
    7. USB TO UART : for debugging
    8. SWD interface : for programming and debugging
    9. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
    10. 6-12V DC input
    11. User button
    12. Reset button
    13. Power indicator
    14. User LED
    15. Serial port Rx/Tx indicator
    16. 500mA fast self-recovery fuse
    17. 8MHz crystal
    18. 32.768KHz crystal
    19. ADC/I2C selection jumper
      • short A and B : Arduino A4, A5 is used as I2C
      • short B and C : Arduino A4, A5 is used as ADC
    20. UART selection jumper
    21. MCU current test jumper : for low power tests
    22. Power selection jumper
      • short 5V and U5V : powered from USB connection
      • short 5V and E5V : powered from external power supply
    23. User button jumper
      • short the jumper to connect to I/Os used in example code
      • open the jumper to connect to other custom pins via jumper wires
    24. User LED jumper
      • short the jumper to connect to I/Os used in example code
      • open the jumper to connect to other custom pins via jumper wires

    XNUCLEO-F030R8 Expansion Headers

    XNUCLEO-F030R8 STM32 development board XNUCLEO-F030R8 STM32 development board

    XNUCLEO-F030R8 Dimension

    Development Resources

    Wiki : www.waveshare.com/wiki/XNUCLEO-F030R8

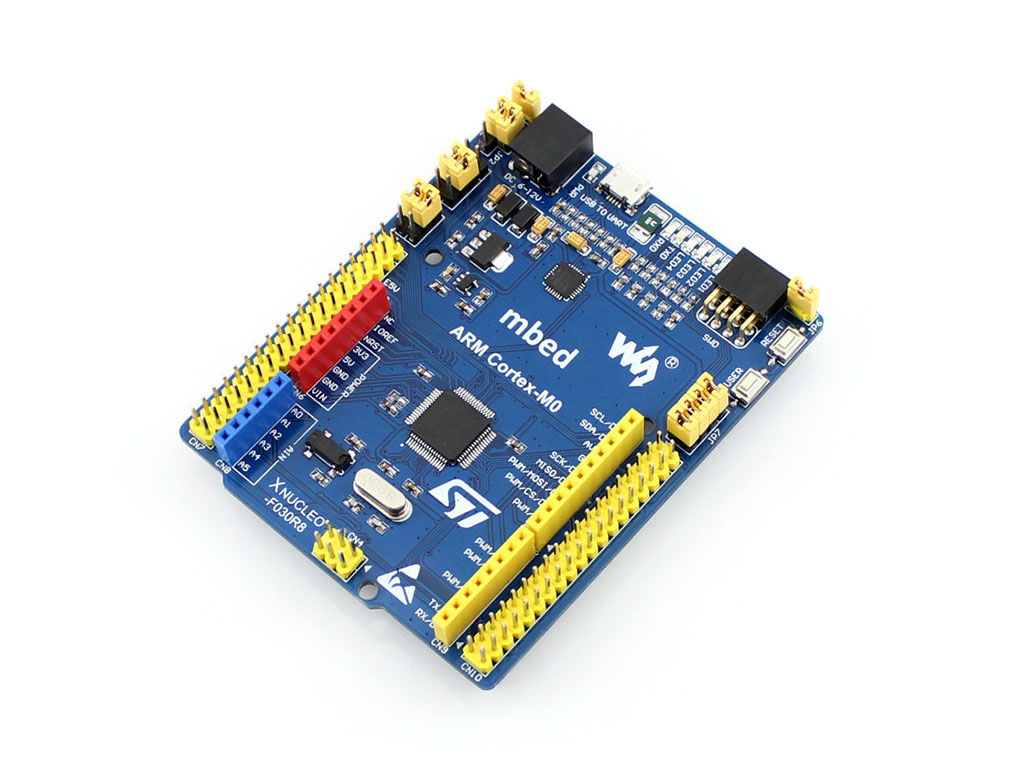

    XNUCLEO-F030R8 Photos

    XNUCLEO-F030R8 STM32 development board
    XNUCLEO-F030R8 STM32 development board
    XNUCLEO-F030R8 STM32 development board
    XNUCLEO-F030R8 STM32 development board
    XNUCLEO-F030R8 STM32 development board

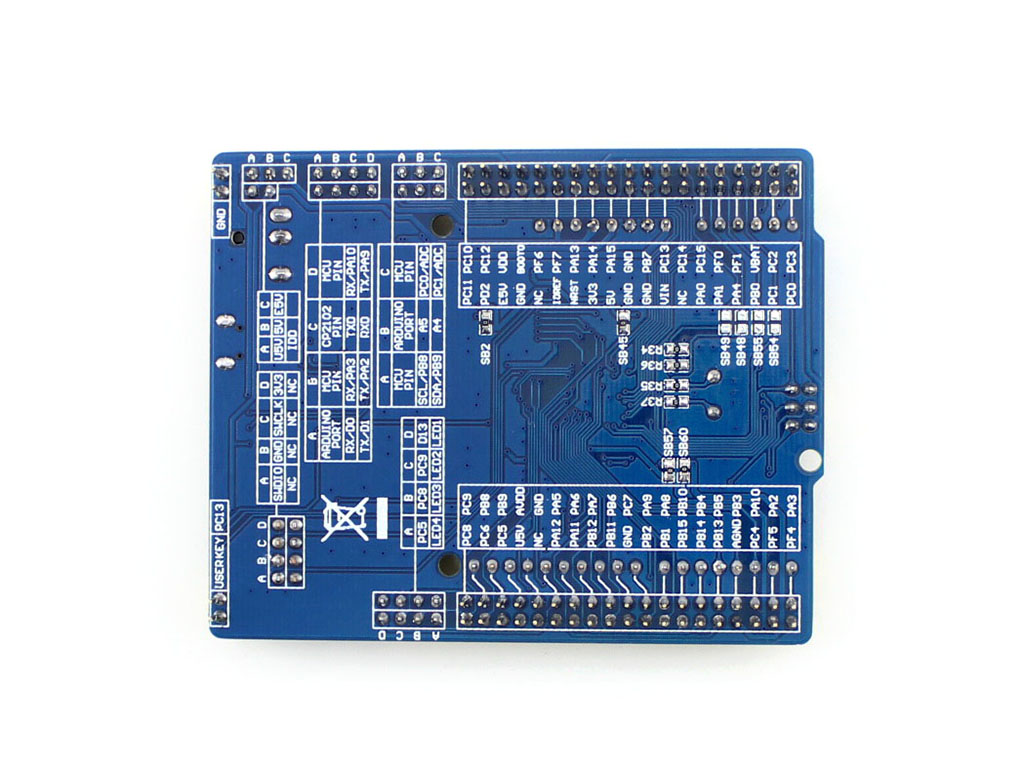

    XNUCLEO-F030R8 STM32 development board back view
    XNUCLEO-F030R8 STM32 development board

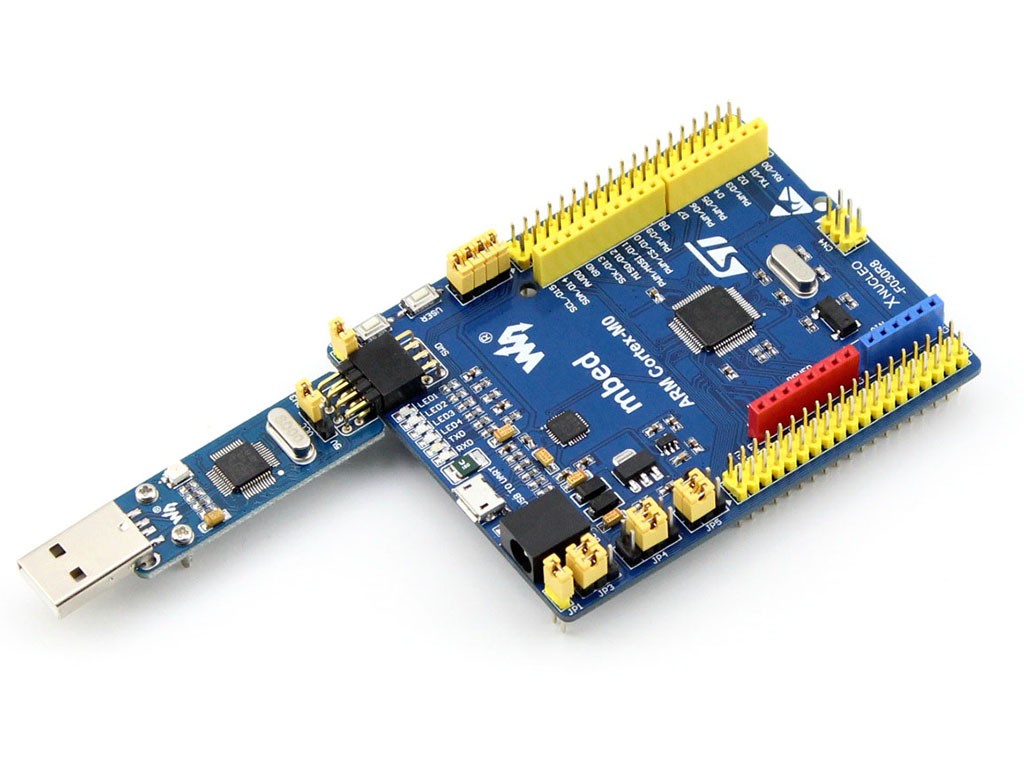

    Connecting with ST-LINK/V2 (mini)
